LEDS



operating instruction:
1. The customer may choose the LED colloid shape, the package form, the external dimensions, the pin (long, short), proposes the wave length, brightness, the half-power angle of view request.
2. Welding condition: The iron welding, the iron (highest 30W) the tip temperature does not surpass 300 ℃, the welding time does not surpass 3 seconds;  Solder maximum temperature 260 ℃, the solder time does not surpass 5 seconds, the welding position leaves the colloid at least 2 millimeters.
3. The pin forming must complete before the welding, must use the jig, to be able to bend at the knees the support to the colloid 2 millimeters, the support forming must guarantee on the pin spacing logical circuit board is consistent.
4.The LED installment must pay attention to each kind of component’s out-wire arrangement, by guards against the polarity to install wrong. The component cannot depend on too near with the heating element, the working condition does not have to surpass its the limit stipulation.
5.The LED working temperature : -30℃~85℃、deposited temperature: -30℃~100℃。
6.The cleaning:When with chemical clean colloid must be careful, some chemicals damage the colloid surface and cause discoloration. May use the ethyl alcohol to clean, to soak, the time does not surpass 3 minutes under the normal temperature.

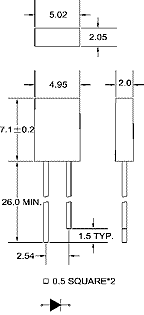

DESCRIPTION 产品描述 2.0*5.0*7.0mm Rectangle without Flange LED Lamps ( 2.0*5.0*7.0毫米 方形无帽沿发光二极管)
Product  Show  /  产品展示 Package  Dimensions(mm)  /  封装尺寸图(毫米)
1-1 1-2
Part Number 产品型号 Chip Material 芯片材质 Lens Type 外观颜色 Emitting Color 发光颜色 Forward Voltage 顺向电压(V) Dominant Wavelength 主波长(nm) Luminous Intensity 发光强度(mcd) Reverse Current 反向电流(μA) Viewing Angel 视角(deg)
TYP MAX MIN MAX MIN TYP MAX △θ半功率角
典型值 最大值 最小值 最大值 最小值 典型值 最大值
YD-2B53YD GaAsP Dispersive Yellow 2.0 2.8 585 595 3 8 10 120
YD-2B53RD GaAsP Dispersive Red 2.0 2.8 620 660 6 12 10 120
YD-2B53GD GaP Dispersive Green 2.0 2.8 565 575 5 10 10 120
YD-2B53SRC AlGaInP Transparent Super light red 1.8 2.5 620 660 45 500 10 75
YD-2B53SGC AlGaInP Transparent Super light green 2.0 2.5 565 575 20 100 10 75
YD-2B53SYC AlGaInP Transparent Super light yellow 1.8 2.5 585 595 50 700 10 75
YD-2B53SOC AlGaInP Transparent Super light orange 1.8 2.5 600 610 50 700 10 75
YD-2B53SPGC InGaN Transparent Super light pure green 2.7 4.0 500 540 150 1000 10 75

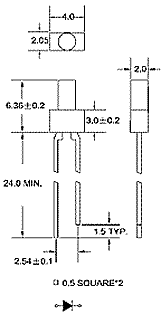

DESCRIPTION 产品描述 2.0*4.0*6.36mm Polygonal without Flange LED Lamps (2.0*4.0*6.36毫米 多边形无帽沿发光二极管)
Product  Show  /  产品展示 Package  Dimensions(mm)  /  封装尺寸图(毫米)
2-1 2-2
Part Number 产品型号 Chip Material 芯片材质 Lens Type 外观颜色 Emitting Color 发光颜色 Forward Voltage 顺向电压(V) Dominant Wavelength 主波长(nm) Luminous Intensity 发光强度(mcd) Reverse Current 反向电流(μA) Viewing Angel 视角(deg)
TYP MAX MIN MAX MIN TYP MAX △θ半功率角
典型值 最大值 最小值 最大值 最小值 典型值 最大值
YD-2A4YD GaAsP Dispersive Yellow 2.0 2.8 585 595 3 8 10 120
YD-2A4RD GaAsP Dispersive Red 2.0 2.8 620 660 6 12 10 120
YD-2A4GD GaP Dispersive Green 2.0 2.8 565 575 5 10 10 120
YD-2A4SRC AlGaInP Transparent Super light red 1.8 2.5 620 660 45 500 10 75
YD-2A4SGC AlGaInP Transparent Super light green 2.0 2.5 565 575 20 100 10 75
YD-2A4SYC AlGaInP Transparent Super light yellow 1.8 2.5 585 595 50 700 10 75
YD-2A4SOC AlGaInP Transparent Super light orange 1.8 2.5 600 610 50 700 10 75
YD-2A4SPGC InGaN Transparent Super light pure green 2.7 4.0 500 540 150 1000 10 75

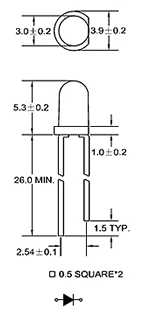

DESCRIPTION 产品描述 3.0*5.30mm Round with Flange LED Lamps (3.0*5.30毫米 圆形有帽沿发光二极管)
Product  Show  /  产品展示 Package  Dimensions(mm)  /  封装尺寸图(毫米)
3-1 3-2
Part Number 产品型号 Chip Material 芯片材质 Lens Type 外观颜色 Emitting Color 发光颜色 Forward Voltage 顺向电压(V) Dominant Wavelength 主波长(nm) Luminous Intensity 发光强度(mcd) Reverse Current 反向电流(μA) Viewing Angel 视角(deg)
TYP MAX MIN MAX MIN TYP MAX △θ半功率角
典型值 最大值 最小值 最大值 最小值 典型值 最大值
YD-3A4YD GaAsP Dispersive Yellow 2.0 2.8 585 595 20 48 10 70
YD-3A4RD GaAsP Dispersive Red 2.0 2.8 620 660 12 26 10 70
YD-3A4GD GaP Dispersive Green 2.0 2.8 565 575 30 60 10 70
YD-3A4SRC AlGaInP Transparent Super light red 1.8 2.5 620 660 180 1000 10 27
YD-3A4SGC AlGaInP Transparent Super light green 2.0 2.5 565 575 80 800 10 27
YD-3A4SYC AlGaInP Transparent Super light yellow 1.8 2.5 585 595 350 1200 10 27
YD-3A4SOC AlGaInP Transparent Super light orange 1.8 2.5 600 610 280 1500 10 27
YD-3A4SPGC InGaN Transparent Super light pure green 2.7 4.0 500 540 500 2500 10 27

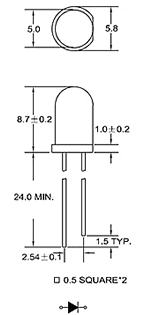

DESCRIPTION 产品描述 5.0*8.70mm Round with Flange LED Lamps (5.0*8.70毫米 圆形有帽沿发光二极管)
Product  Show  /  产品展示 Package  Dimensions(mm)  /  封装尺寸图(毫米)
4-1 4-2
Part Number 产品型号 Chip Material 芯片材质 Lens Type 外观颜色 Emitting Color 发光颜色 Forward Voltage 顺向电压(V) Dominant Wavelength 主波长(nm) Luminous Intensity 发光强度(mcd) Reverse Current 反向电流(μA) Viewing Angel 视角(deg)
TYP MAX MIN MAX MIN TYP MAX △θ半功率角
典型值 最大值 最小值 最大值 最小值 典型值 最大值
YD-5A3YD GaAsP Dispersive Yellow 2.0 2.8 585 595 20 55 10 45
YD-5A3RD GaAsP Dispersive Red 2.0 2.8 620 660 30 65 10 45
YD-5A3GD GaP Dispersive Green 2.0 2.8 565 575 15 35 10 45
YD-5A4SRC AlGaInP Transparent Super light red 1.8 2.5 620 660 180 1000 10 30
YD-5A4SGC AlGaInP Transparent Super light green 2.0 2.5 565 575 80 800 10 30
YD-5A4SYC AlGaInP Transparent Super light yellow 1.8 2.5 585 595 350 1200 10 30
YD-5A4SOC AlGaInP Transparent Super light orange 1.8 2.5 600 610 280 4500 10 30
YD-5A4SPGC InGaN Transparent Super light pure green 2.7 4.0 500 540 500 2600 10 30

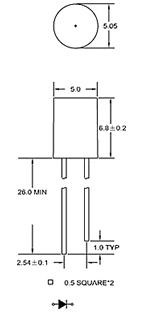

DESCRIPTION 产品描述 5.0*6.8mm Columniform without Flange LED Lamps (5.0*6.8毫米 圆形平顶无帽沿发光二极管)
Product  Show  /  产品展示 Package  Dimensions(mm)  /  封装尺寸图(毫米)
5-1 5-2
Part Number 产品型号 Chip Material 芯片材质 Lens Type 外观颜色 Emitting Color 发光颜色 Forward Voltage 顺向电压(V) Dominant Wavelength 主波长(nm) Luminous Intensity 发光强度(mcd) Reverse Current 反向电流(μA) Viewing Angel 视角(deg)
TYP MAX MIN MAX MIN TYP MAX △θ半功率角
典型值 最大值 最小值 最大值 最小值 典型值 最大值
YD-5L3YD GaAsP Dispersive Yellow 2.0 2.8 585 595 20 25 10 120
YD-5L3RD GaAsP Dispersive Red 2.0 2.8 620 660 16 30 10 120
YD-5L3GD GaP Dispersive Green 2.1 2.8 565 575 8 16 10 120

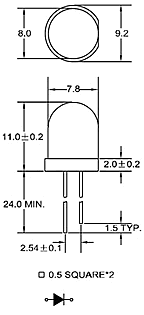

DESCRIPTION 产品描述 8.0*11.0mm Round with Flange LED Lamps (8.0*11.0毫米 圆形有帽沿发光二极管)
Product  Show  /  产品展示 Package  Dimensions(mm)  /  封装尺寸图(毫米)
6-1 6-2
Part Number 产品型号 Chip Material 芯片材质 Lens Type 外观颜色 Emitting Color 发光颜色 Forward Voltage 顺向电压(V) Dominant Wavelength 主波长(nm) Luminous Intensity 发光强度(mcd) Reverse Current 反向电流(μA) Viewing Angel 视角(deg)
TYP MAX MIN MAX MIN TYP MAX △θ半功率角
典型值 最大值 最小值 最大值 最小值 典型值 最大值
YD-8A3YC GaAsP Transparent Yellow 2.0 2.8 585 595 8 16 10 20
YD-8A3RD GaAsP Dispersive Red 2.0 2.8 620 660 10 20 10 36
YD-8A3GD GaP Dispersive Green 2.1 2.8 565 575 3.5 12 10 36

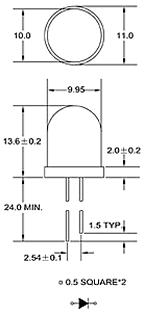

DESCRIPTION 产品描述 10.0*13.6mm Round with Flange LED Lamps (10*13.6毫米 圆形有帽沿发光二极管)
Product  Show  /  产品展示 Package  Dimensions(mm)  /  封装尺寸图(毫米)
7-1 7-2
Part Number 产品型号 Chip Material 芯片材质 Lens Type 外观颜色 Emitting Color 发光颜色 Forward Voltage 顺向电压(V) Dominant Wavelength 主波长(nm) Luminous Intensity 发光强度(mcd) Reverse Current 反向电流(μA) Viewing Angel 视角(deg)
TYP MAX MIN MAX MIN TYP MAX △θ半功率角
典型值 最大值 最小值 最大值 最小值 典型值 最大值
YD-10A3SYC AlGaInP Transparent Yellow 2.1 2.8 585 595 1000 2000 10 8
YD-10A3HRC AlGaInP Transparent Red 1.7 2.4 620 660 300 700 10 8
YD-10A3HGT GaP Transparent Green 2.1 2.8 565 575 300 600 10 8


DESCRIPTION 产品描述 3.0mm dia Led Lamp-Blue/White(3毫米led灯-蓝色/白色)
Product  Show  /  产品展示 Package  Dimensions(mm)  /  封装尺寸图(毫米)
8-1 8-2
Part Number 产品型号 Chip Material 芯片材质 Lens Type 外观颜色 Emitting Color 发光颜色 Forward Voltage 顺向电压(V) Dominant Wavelength 主波长(nm) Luminous Intensity 发光强度(mcd) Reverse Current 反向电流(μA) Viewing Angel 视角(deg)
TYP MAX MAX TYP MAX △θ半功率角
典型值 最大值 最大值 典型值 最大值
YD-3A4HBC InGaN Transparent Blue 3.5 4.5 470 750 10 20
YD-3A4SBC InGaN Transparent Blue 3.5 4.5 470 1200 10 20
YD-3A4UBC InGaN Transparent Blue 3.5 4.5 470 2500 10 20
YD-3A4SWC InGaN Transparent White 3.5 4.5   3500 10 20
YD-3A4UWC InGaN Transparent White 3.5 4.5   6000 10 20


DESCRIPTION 产品描述 5.0mm dia Led Lamp-Blue/White(3毫米led灯-蓝色/白色)
Product  Show  /  产品展示 Package  Dimensions(mm)  /  封装尺寸图(毫米)
9-1 9-2
Part Number 产品型号 Chip Material 芯片材质 Lens Type 外观颜色 Emitting Color 发光颜色 Forward Voltage 顺向电压(V) Dominant Wavelength 主波长(nm) Luminous Intensity 发光强度(mcd) Reverse Current 反向电流(μA) Viewing Angel 视角(deg)
TYP MAX MAX TYP MAX △θ半功率角
典型值 最大值 最大值 典型值 最大值
YD-5A3HBC InGaN Transparent Blue 3.5 4.5 470 800 10 20
YD-5A3SBC InGaN Transparent Blue 3.5 4.5 470 1500 10 20
YD-5A3UBC InGaN Transparent Blue 3.5 4.5 470 3500 10 20
YD-5A3SWC InGaN Transparent White 3.5 4.5   3000 10 20
YD-5A3UWC InGaN Transparent White 3.5 4.5   6000 10 20
